Please note: You should not publish your lab solutions in any publicly accessible site such as github.
We encourage you to ask questions on course's Piazza forum. If no help provided on Piazza forum then try to email TA in charge. E-mails regarding this lab (such as administrative issues) should be sent with the subject "OSE, lab5".
In this lab, you will implement spawn
, a library
call that loads and runs on-disk executables. You will then flesh
out your kernel and library operating system enough to run a shell
on the console. These features need a file system, and this lab
introduces a simple read/write file system.
Use Git to fetch the latest version of the course repository, and then create a local branch called lab5 based on our lab5 branch, origin/lab5:
$ git pull Already up-to-date. $ git checkout -b lab5 origin/lab5 Branch lab5 set up to track remote branch refs/remotes/origin/lab5. Switched to a new branch "lab5" $ git merge lab4 Merge made by recursive. ..... $
The main new component for this part of the lab is the file system environment, located in the new fs directory. Scan through all the files in this directory to get a feel for what all is new. Also, there are some new file system-related source files in the user and lib directories,
fs/fs.c | Code that mainipulates the file system's on-disk structure. |
fs/bc.c | A simple block cache built on top of our user-level page fault handling facility. |
fs/ide.c | Minimal PIO-based (non-interrupt-driven) IDE driver code. |
fs/serv.c | The file system server that interacts with client environments using file system IPCs. |
lib/fd.c | Code that implements the general UNIX-like file descriptor interface. |
lib/file.c | The driver for on-disk file type, implemented as a file system IPC client. |
lib/console.c | The driver for console input/output file type. |
lib/spawn.c | Code skeleton of the spawn library call. |
You should run the pingpong, primes, and forktree test cases
from lab 4 again after merging in the new lab 5 code. You will need
to comment out the ENV_CREATE(fs_fs)
line in
kern/init.c because fs/fs.c tries to do some I/O,
which JOS does not allow yet. Similarly, temporarily comment out
the call to close_all()
in lib/exit.c; this
function calls subroutines that you will implement later in the
lab, and therefore will panic if called. If your lab 4 code doesn't
contain any bugs, the test cases should run fine. Don't proceed
until they work. Don't forget to un-comment these lines when you
start Exercise 1.
If they don't work, use git diff lab4 to review all the changes, making sure there isn't any code you wrote for lab4 (or before) missing from lab 5. Make sure that lab 4 still works.
As before, you will need to do all of the regular exercises described in the lab and at least one challenge problem. Additionally, you will need to write up brief answers to the questions posed in the lab and a short (e.g., one or two paragraph) description of what you did to solve your chosen challenge problem. If you implement more than one challenge problem, you only need to describe one of them in the write-up, though of course you are welcome to do more.
When you are ready to hand in your lab (including the filled lab5-questionary.txt), run make handin in the source directory. This will make a tar file for you, which you can then submit via webcourse site. You can list the contents of the tar file with tar -tvzf lab5-handin.tar.gz or unpack it (in another directory) with tar -xzf lab5-handin.tar.gz.
As before, we will be grading your solutions with a grading program. You can run make grade in the lab directory to test your kernel with the grading program (no test for the questionary is provided). The grading program may rely on some in-kernel code for the check. Needless to say, that altering this code or otherwise deceiving automatic testing is considered severe cheating.
The file system you will work with is much simpler than most "real" file systems including that of xv6 UNIX, but it is powerful enough to provide the basic features: creating, reading, writing, and deleting files organized in a hierarchical directory structure.
We are (for the moment anyway) developing only a single-user operating system, which provides protection sufficient to catch bugs but not to protect multiple mutually suspicious users from each other. Our file system therefore does not support the UNIX notions of file ownership or permissions. Our file system also currently does not support hard links, symbolic links, time stamps, or special device files like most UNIX file systems do.
Most UNIX file systems divide available disk space into two main
types of regions: inode regions and data regions.
UNIX file systems assign one inode to each file in the file
system; a file's inode holds critical meta-data about the file such
as its stat
attributes and pointers to its data
blocks. The data regions are divided into much larger (typically
8KB or more) data blocks, within which the file system
stores file data and directory meta-data. Directory entries contain
file names and pointers to inodes; a file is said to be
hard-linked if multiple directory entries in the file system
refer to that file's inode. Since our file system will not support
hard links, we do not need this level of indirection and therefore
can make a convenient simplification: our file system will not use
inodes at all and instead will simply store all of a file's (or
sub-directory's) meta-data within the (one and only) directory
entry describing that file.
Both files and directories logically consist of a series of data
blocks, which may be scattered throughout the disk much like the
pages of an environment's virtual address space can be scattered
throughout physical memory. The file system environment hides the
details of block layout, presenting interfaces for reading and
writing sequences of bytes at arbitrary offsets within files. The
file system environment handles all modifications to directories
internally as a part of performing actions such as file creation
and deletion. Our file system does allow user environments to
read directory meta-data directly (e.g., with
read
), which means that user environments can perform
directory scanning operations themselves (e.g., to implement the
ls program) rather than having to rely on additional
special calls to the file system. The disadvantage of this approach
to directory scanning, and the reason most modern UNIX variants
discourage it, is that it makes application programs dependent on
the format of directory meta-data, making it difficult to change
the file system's internal layout without changing or at least
recompiling application programs as well.
The UNIX xv6 file system uses a block size of 512 bytes, the same as the sector size of the underlying disk. Most modern file systems use a larger block size, however, because storage space has gotten much cheaper and it is more efficient to manage storage at larger granularities. Our file system will use a block size of 4096 bytes, conveniently matching the processor's page size.

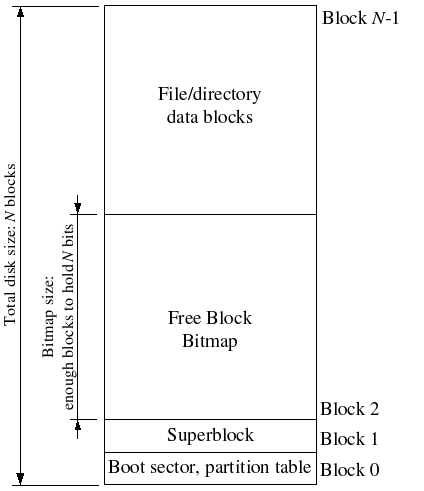

File systems typically reserve certain disk blocks at "easy-to-find" locations on the disk (such as the very start or the very end) to hold meta-data describing properties of the file system as a whole, such as the block size, disk size, any meta-data required to find the root directory, the time the file system was last mounted, the time the file system was last checked for errors, and so on. These special blocks are called superblocks.
Our file system will have exactly one superblock, which will
always be at block 1 on the disk. Its layout is defined by
struct Super
in inc/fs.h. Block 0 is
typically reserved to hold boot loaders and partition tables, so
file systems generally do not use the very first disk block. Many
"real" file systems maintain multiple superblocks, replicated
throughout several widely-spaced regions of the disk, so that if
one of them is corrupted or the disk develops a media error in that
region, the other superblocks can still be found and used to access
the file system.
struct File
in inc/fs.h. This meta-data
includes the file's name, size, type (regular file or directory),
and pointers to the blocks comprising the file. As mentioned above,
we do not have inodes, so this meta-data is stored in a directory
entry on disk. Unlike in most "real" file systems, for simplicity
we will use this one File
structure to represent file
meta-data as it appears both on disk and in memory.

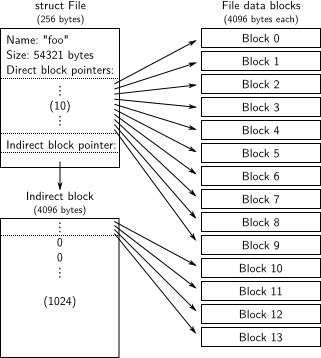

The f_direct
array in struct File
contains space to store the block numbers of the first 10
(NDIRECT
) blocks of the file, which we call the file's
direct blocks. For small files up to 10*4096 = 40KB in size,
this means that the block numbers of all of the file's blocks will
fit directly within the File
structure itself. For
larger files, however, we need a place to hold the rest of the
file's block numbers. For any file greater than 40KB in size,
therefore, we allocate an additional disk block, called the file's
indirect block, to hold up to 4096/4 = 1024 additional block
numbers. Our file system therefore allows files to be up to 1034
blocks, or just over four megabytes, in size. To support larger
files, "real" file systems typically support double- and
triple-indirect blocks as well.
File
structure in our file system
can represent either a regular file or a directory; these
two types of "files" are distinguished by the type
field in the File
structure. The file system manages
regular files and directory-files in exactly the same way, except
that it does not interpret the contents of the data blocks
associated with regular files at all, whereas the file system
interprets the contents of a directory-file as a series of
File
structures describing the files and
subdirectories within the directory.
The superblock in our file system contains a File
structure (the root
field in struct
Super
) that holds the meta-data for the file system's root
directory. The contents of this directory-file is a sequence of
File
structures describing the files and directories
located within the root directory of the file system. Any
subdirectories in the root directory may in turn contain more
File
structures representing sub-subdirectories, and
so on.
The goal for this lab is not to have you implement the entire file system, but for you to implement only certain key components. In particular, you will be responsible for reading blocks into the block cache and flushing them back to disk; allocating disk blocks; mapping file offsets to disk blocks; and implementing read, write, and open in the IPC interface. Because you will not be implementing all of the file system yourself, it is very important that you familiarize yourself with the provided code and the various file system interfaces.
The file system environment in our operating system needs to be able to access the disk, but we have not yet implemented any disk access functionality in our kernel. Instead of taking the conventional "monolithic" operating system strategy of adding an IDE disk driver to the kernel along with the necessary system calls to allow the file system to access it, we instead implement the IDE disk driver as part of the user-level file system environment. We will still need to modify the kernel slightly, in order to set things up so that the file system environment has the privileges it needs to implement disk access itself.
It is easy to implement disk access in user space this way as long as we rely on polling, "programmed I/O" (PIO)-based disk access and do not use disk interrupts. It is possible to implement interrupt-driven device drivers in user mode as well (the L3 and L4 kernels do this, for example), but it is more difficult since the kernel must field device interrupts and dispatch them to the correct user-mode environment.
The x86 processor uses the IOPL bits in the EFLAGS register to determine whether protected-mode code is allowed to perform special device I/O instructions such as the IN and OUT instructions. Since all of the IDE disk registers we need to access are located in the x86's I/O space rather than being memory-mapped, giving "I/O privilege" to the file system environment is the only thing we need to do in order to allow the file system to access these registers. In effect, the IOPL bits in the EFLAGS register provides the kernel with a simple "all-or-nothing" method of controlling whether user-mode code can access I/O space. In our case, we want the file system environment to be able to access I/O space, but we do not want any other environments to be able to access I/O space at all.
Exercise 1. i386_init
identifies the file system environment by passing the type
ENV_TYPE_FS
to your environment creation function,
env_create
. Modify env_create
in
env.c, so that it gives the file system environment I/O
privilege, but never gives that privilege to any other
environment.
Make sure you can start the file environment without causing a General Protection fault. You should pass the "fs i/o" test in make grade.
Question
Note that the GNUmakefile file in this lab sets up QEMU to use the file obj/kern/kernel.img as the image for disk 0 (typically "Drive C" under DOS/Windows) as before, and to use the (new) file obj/fs/fs.img as the image for disk 1 ("Drive D"). In this lab our file system should only ever touch disk 1; disk 0 is used only to boot the kernel. If you manage to corrupt either disk image in some way, you can reset both of them to their original, "pristine" versions simply by typing:
$ rm obj/kern/kernel.img obj/fs/fs.img $ make
or by doing:
$ make clean $ make
Challenge! Implement interrupt-driven IDE disk access, with or without DMA. You can decide whether to move the device driver into the kernel, keep it in user space along with the file system, or even (if you really want to get into the micro-kernel spirit) move it into a separate environment of its own.
In our file system, we will implement a simple "buffer cache" (really just a block cache) with the help of the processor's virtual memory system. The code for the block cache is in fs/bc.c.
Our file system will be limited to handling disks of size 3GB or
less. We reserve a large, fixed 3GB region of the file system
environment's address space, from 0x10000000 (DISKMAP
)
up to 0xD0000000 (DISKMAP+DISKMAX
), as a "memory
mapped" version of the disk. For example, disk block 0 is mapped at
virtual address 0x10000000, disk block 1 is mapped at virtual
address 0x10001000, and so on. The diskaddr
function
in fs/bc.c implements this translation from disk block
numbers to virtual addresses (along with some sanity checking).
Since our file system environment has its own virtual address space independent of the virtual address spaces of all other environments in the system, and the only thing the file system environment needs to do is to implement file access, it is reasonable to reserve most of the file system environment's address space in this way. It would be awkward for a real file system implementation on a 32-bit machine to do this since modern disks are larger than 3GB. Such a buffer cache management approach may still be reasonable on a machine with a 64-bit address space.
Of course, it would be unreasonable to read the entire disk into memory, so instead we'll implement a form of demand paging, wherein we only allocate pages in the disk map region and read the corresponding block from the disk in response to a page fault in this region. This way, we can pretend that the entire disk is in memory.
Exercise 2. Implement the
bc_pgfault
and flush_block
functions in
fs/bc.c. bc_pgfault
is a page fault
handler, just like the one your wrote in the previous lab for
copy-on-write fork, except that its job is to load pages in from
the disk in response to a page fault. When writing this, keep in
mind that (1) addr
may not be aligned to a block
boundary and (2) ide_read
operates in sectors, not
blocks.
The flush_block
function should write a block out
to disk if necessary. flush_block
shouldn't
do anything if the block isn't even in the block cache (that is,
the page isn't mapped) or if it's not dirty. We will use the VM
hardware to keep track of whether a disk block has been modified
since it was last read from or written to disk. To see whether a
block needs writing, we can just look to see if the
PTE_D
"dirty" bit is set in the uvpt
entry. (The PTE_D
bit is set by the processor in
response to a write to that page; see 5.2.4.3 in
chapter5 of the 386 reference manual.) After writing the
block to disk, flush_block
should clear the
PTE_D
bit using sys_page_map
.
Use make grade to test your code. Your code should pass "check_bc", "check_super", and "check_bitmap".
fs_init
function in fs/fs.c is a
prime example of how to use the block cache. After initializing the
block cache, it simply stores pointers into the disk map region in
the super
global variable. After this point, we can
simply read from the super
structure as if they were
in memory and our page fault handler will read them from disk as
necessary.
Challenge! The block cache has no
eviction policy. Once a block gets faulted in to it, it never gets
removed and will remain in memory forevermore. Add eviction to the
buffer cache. Using the PTE_A
"accessed" bits in the
page tables, which the hardware sets on any access to a page, you
can track approximate usage of disk blocks without the need to
modify every place in the code that accesses the disk map region.
Be careful with dirty blocks.
fs_init
sets the bitmap
pointer, we can
treat bitmap
as a packed array of bits, one for each
block on the disk. See, for example, block_is_free
,
which simply checks whether a given block is marked free in the
bitmap.
Exercise 3. Use
free_block
as a model to implement
alloc_block
, which should find a free disk block in
the bitmap, mark it used, and return the number of that block.
When you allocate a block, you should immediately flush the
changed bitmap block to disk with flush_block
, to
help file system consistency.
Use make grade to test your code. Your code should now pass "alloc_block".
We have provided a variety of functions in fs/fs.c to
implement the basic facilities you will need to interpret and
manage File
structures, scan and manage the entries of
directory-files, and walk the file system from the root to resolve
an absolute pathname. Read through all of the code in
fs/fs.c and make sure you understand what each function
does before proceeding.
Exercise 4. Implement
file_block_walk
and file_get_block
.
file_block_walk
maps from a block offset within a
file to the pointer for that block in the struct
File
or the indirect block, very much like what
pgdir_walk
did for page tables.
file_get_block
goes one step further and maps to the
actual disk block, allocating a new one if necessary.
Use make grade to test your code. Your code should pass "file_open", "file_get_block", and "file_flush/file_truncated/file rewrite", and "testfile".
file_block_walk
and file_get_block
are
the workhorses of the file system. For example,
file_read
and file_write
are little more
than the bookkeeping atop file_get_block
necessary to
copy bytes between scattered blocks and a sequential buffer.
Challenge! The file system is likely to be corrupted if it gets interrupted in the middle of an operation (for example, by a crash or a reboot). Implement soft updates or journalling to make the file system crash-resilient and demonstrate some situation where the old file system would get corrupted, but yours doesn't.
Now that we have the necessary functionality within the file system environment itself, we must make it accessible to other environments that wish to use the file system. Since other environments can't directly call functions in the file system environment, we'll expose access to the file system environment via a remote procedure call, or RPC, abstraction, built atop JOS's IPC mechanism. Graphically, here's what a call to the file system server (say, read) looks like
Regular env FS env +---------------+ +---------------+ | read | | file_read | | (lib/fd.c) | | (fs/fs.c) | ...|.......|.......|...|.......^.......|............... | v | | | | RPC mechanism | devfile_read | | serve_read | | (lib/file.c) | | (fs/serv.c) | | | | | ^ | | v | | | | | fsipc | | serve | | (lib/file.c) | | (fs/serv.c) | | | | | ^ | | v | | | | | ipc_send | | ipc_recv | | | | | ^ | +-------|-------+ +-------|-------+ | | +-------------------+ |
Everything below the dotted line is simply the mechanics of
getting a read request from the regular environment to the file
system environment. Starting at the beginning, read
(which we provide) works on any file descriptor and simply
dispatches to the appropriate device read function, in this case
devfile_read
(we can have more device types, like
pipes). devfile_read
implements read
specifically for on-disk files. This and the other
devfile_*
functions in lib/file.c implement
the client side of the FS operations and all work in roughly the
same way, bundling up arguments in a request structure, calling
fsipc
to send the IPC request, and unpacking and
returning the results. The fsipc
function simply
handles the common details of sending a request to the server and
receiving the reply.
The file system server code can be found in fs/serv.c.
It loops in the serve
function, endlessly receiving a
request over IPC, dispatching that request to the appropriate
handler function, and sending the result back via IPC. In the read
example, serve
will dispatch to
serve_read
, which will take care of the IPC details
specific to read requests such as unpacking the request structure
and finally call file_read
to actually perform the
file read.
Recall that JOS's IPC mechanism lets an environment send a
single 32-bit number and, optionally, share a page. To send a
request from the client to the server, we use the 32-bit number for
the request type (the file system server RPCs are numbered, just
like how syscalls were numbered) and store the arguments to the
request in a union Fsipc
on the page shared via the
IPC. On the client side, we always share the page at
fsipcbuf
; on the server side, we map the incoming
request page at fsreq
(0x0ffff000
).
The server also sends the response back via IPC. We use the
32-bit number for the function's return code. For most RPCs, this
is all they return. FSREQ_READ
and
FSREQ_STAT
also return data, which they simply write
to the page that the client sent its request on. There's no need to
send this page in the response IPC, since the client shared it with
the file system server in the first place. Also, in its response,
FSREQ_OPEN
shares with the client a new "Fd page".
We'll return to the file descriptor page shortly.
Exercise 5. Implement
serve_read
in fs/serv.c.
serve_read
's heavy lifting will be done by the
already-implemented file_read
in fs/fs.c
(which, in turn, is just a bunch of calls to
file_get_block
). serve_read
just has to
provide the RPC interface for file reading. Look at the comments
and code in serve_set_size
to get a general idea of
how the server functions should be structured.
Use make grade to test your code. Your code should pass "serve_open/file_stat/file_close" and "file_read" for a score of 65/145.
Exercise 6. Implement
serve_write
in fs/serv.c and
devfile_write
in lib/file.c.
Use make grade to test your code. Your code should pass "file_write", "file_read after file_write", "open", and "large file" for a score of 85/145.
We have given you the code for spawn
(see
lib/spawn.c)
which creates a new environment, loads a program image from the
file system into it, and then starts the child environment running
this program. The parent process then continues running
independently of the child. The spawn
function
effectively acts like a fork
in UNIX followed by an
immediate exec
in the child process.
We implemented spawn
rather than a UNIX-style
exec
because spawn
is easier to implement
from user space in "exokernel fashion", without special help from
the kernel. Think about what you would have to do in order to
implement exec
in user space, and be sure you
understand why it is harder.
Exercise 7. spawn
relies on the new syscall sys_env_set_trapframe
to
initialize the state of the newly created environment. Implement
sys_env_set_trapframe
in kernel/syscall.c
(don't forget to dispatch the new system call in
syscall()
).
Test your code by running the user/spawnhello program from kern/init.c, which will attempt to spawn /hello from the file system.
Use make grade to test your code.
Challenge! Implement Unix-style
exec
.
Challenge! Implement
mmap
-style memory-mapped files and modify
spawn
to map pages directly from the ELF image when
possible.
The UNIX file descriptors are a general notion that also
encompasses pipes, console I/O, etc. In JOS, each of these device
types has a corresponding struct Dev
, with pointers to
the functions that implement read/write/etc. for that device type.
lib/fd.c implements the general UNIX-like file descriptor
interface on top of this. Each struct Fd
indicates its
device type, and most of the functions in lib/fd.c simply
dispatch operations to functions in the appropriate struct
Dev
.
lib/fd.c also maintains the file descriptor
table region in each application environment's address space,
starting at FSTABLE
. This area reserves a page's worth
(4KB) of address space for each of the up to MAXFD
(currently 32) file descriptors the application can have open at
once. At any given time, a particular file descriptor table page is
mapped if and only if the corresponding file descriptor is in use.
Each file descriptor also has an optional "data page" in the region
starting at FILEDATA
, which devices can use if they
choose.
We would like to share file descriptor state across
fork
and spawn
, but file descriptor state
is kept in user-space memory. Right now, on fork
, the
memory will be marked copy-on-write, so the state will be
duplicated rather than shared. (This means environments won't be
able to seek in files they didn't open themselves and that pipes
won't work across a fork.) On spawn
, the memory will
be left behind, not copied at all. (Effectively, the spawned
environment starts with no open file descriptors.)
We will change fork
to know that certain regions of
memory are used by the "library operating system" and should always
be shared. Rather than hard-code a list of regions somewhere, we
will set an otherwise-unused bit in the page table entries (just
like we did with the PTE_COW
bit in
fork
).
We have defined a new PTE_SHARE
bit in
inc/lib.h. This bit is one of the three PTE bits that are
marked "available for software use" in the Intel and AMD manuals.
We will establish the convention that if a page table entry has
this bit set, the PTE should be copied directly from parent to
child in both fork
and spawn
. Note that
this is different from marking it copy-on-write: as described in
the first paragraph, we want to make sure to share updates
to the page.
Exercise 8. Change
duppage
in lib/fork.c to follow the new
convention. If the page table entry has the
PTE_SHARE
bit set, just copy the mapping directly.
(You should use PTE_SYSCALL
, not 0xfff
,
to mask out the relevant bits from the page table entry.
0xfff
picks up the accessed and dirty bits as
well.)
Likewise, implement copy_shared_pages
in
lib/spawn.c. It should loop through all page table
entries in the current process (just like fork
did),
copying any page mappings that have the PTE_SHARE
bit set into the child process.
Use make run-testpteshare to check that your code is behaving properly. You should see lines that say "fork handles PTE_SHARE right" and "spawn handles PTE_SHARE right".
Use make run-testfdsharing to check that file descriptors are shared properly. You should see lines that say "read in child succeeded" and "read in parent succeeded".
For the shell to work, we need a way to type at it. QEMU has been displaying output we write to the CGA display and the serial port, but so far we've only taken input while in the kernel monitor. In QEMU, input typed in the graphical window appear as input from the keyboard to JOS, while input typed to the console appear as characters on the serial port. kern/console.c already contains the keyboard and serial drivers that have been used by the kernel monitor since lab 1, but now you need to attach these to the rest of the system.
Exercise 9. In your
kern/trap.c, call kbd_intr
to handle trap
IRQ_OFFSET+IRQ_KBD
and serial_intr
to
handle trap IRQ_OFFSET+IRQ_SERIAL
.
We implemented the console input/output file type for you, in
lib/console.c. kbd_intr
and
serial_intr
fill a buffer with the recently read input
while the console file type drains the buffer (the console file
type is used for stdin/stdout by default unless the user redirects
them).
Test your code by running make run-testkbd and type a few lines. The system should echo your lines back to you as you finish them. Try typing in both the console and the graphical window, if you have both available.
Run make run-icode or make run-icode-nox. This will run your kernel and start user/icode. icode execs init, which will set up the console as file descriptors 0 and 1 (standard input and standard output). It will then spawn sh, the shell. You should be able to run the following commands:
echo hello world | cat cat lorem |cat cat lorem |num cat lorem |num |num |num |num |num lsfd
Note that the user library routine cprintf
prints
straight to the console, without using the file descriptor code.
This is great for debugging but not great for piping into other
programs. To print output to a particular file descriptor (for
example, 1, standard output), use fprintf(1, "...",
...)
. printf("...", ...)
is a short-cut for
printing to FD 1. See user/lsfd.c for examples.
Exercise 10.
The shell doesn't support I/O redirection. It would be nice to
run sh <script instead of having to type in all the
commands in the script by hand, as you did above. Add I/O
redirection for < to user/sh.c
.
Test your implementation by typing sh <script into your shell
Run make run-testshell to test your shell. testshell simply feeds the above commands (also found in fs/testshell.sh) into the shell and then checks that the output matches fs/testshell.key.
Challenge! Add more features to the shell. Possibilities include (a few require changes to the file system too):
ls &
)ls; echo hi
)(ls; echo hi) | cat >
out
)echo
$hello
)echo "a | b"
)Your code should pass all tests at this point. As usual, you can grade your submission with make grade and hand it in with make handin.
This completes the lab. As usual, don't forget to run make grade and to write up your answers and a description of your challenge exercise solution. Before handing in, use git status and git diff to examine your changes and don't forget to git add answers-lab5.txt. When you're ready, commit your changes with git commit -am 'my solutions to lab 5', then make handin to submit your solution.
